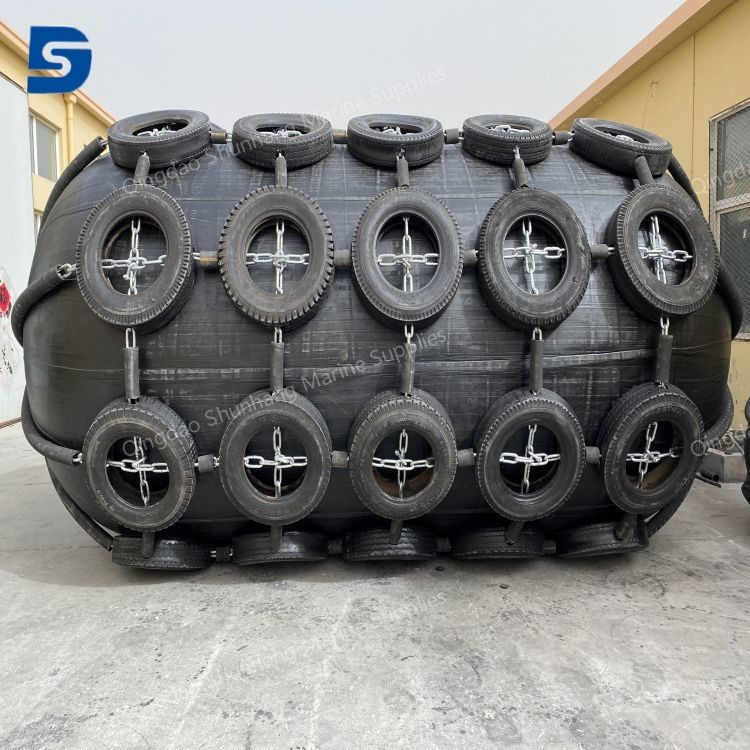

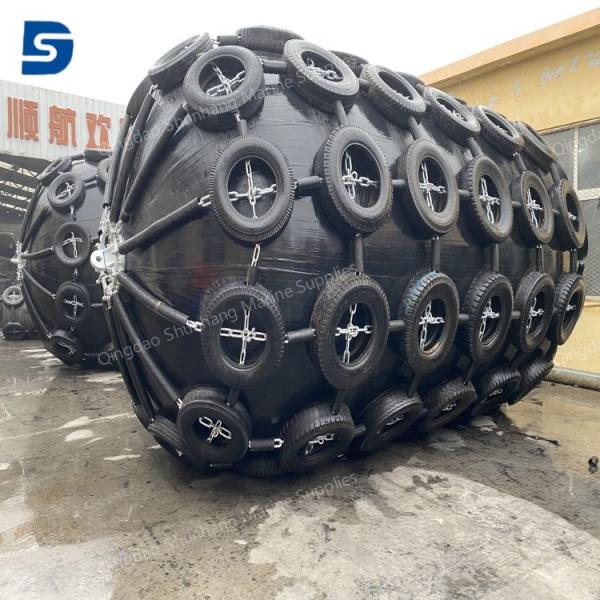

ISO17357:2014 Inflatable Dock Bumper Yokohama Rubber Fender
Raw Material of Our Yokohama Rubber Fender
Rubber dipped Nylon cord fabric, 1260D9091(1*2)and natural rubber ( Some other factory use Nylon with less tensile force , and reclaimed rubber ) .All the rubber we use is natural rubber , not any reclaimed rubber .We have been asking for customers’ feedback and have been improving the performance of our rubber , the aging of rubber has been greatly improved now.
Our rubber has been tested at -40℃, the tensile strength at normal temperature is 18.4MPa.After -40℃, 120 hours testing , the tensile strength is 15.9MPa , there is no obvious change in appearance.
Our pneumatic rubber fender are also used in Canada ,Russia etc. After six months, customers’ feedback is our pneumatic rubber fenders are still perform well, there’s no obvious change on the surface.
Outer and Inner Rubber Material Requirements of Yokohama Rubber Fenders
Test item | Test method | Required value | |
| Outer rubber | Inner rubber | ||
| 1. Before aging | – | – | – |
| 1.1 Tensile strength | ISO 37:2011 | 18 MPa or more | 10 MPa or more |
| 1.2 Elongation | ISO 37:2011 | 400 % or more | 400 % or more |
| 1.3 Hardness | ISO 7619-1:2010 | 60 ± 10 (Durometer hardness Type A) | 50 ± 10 (Durometer hardness Type A) |
2. After aging | ISO 188:2011 | Air oven aging, 70°C ± 1°C, 96 h | Air oven aging, 70°C ± 1°C, 96 h |
| 2.1 Tensile strength | ISO 37:2011 | Not less than 80 % of the original property | Not less than 80 % of the origi- nal property |
| 2.2 Elongation | ISO 37:2011 | Not less than 80 % of the original property | Not less than 80 % of the origi- nal property |
| 2.3 Hardness | ISO 7619-1:2010 | Not to exceed the original prop- erty by more than 8 | Not to exceed the original prop- erty by more than 8 |
| 3. Tear | ISO 34-1:2010 | 400 N/cm or more | No requirement |
| 4. Compression set | ISO 815-1:2008 | 30 %(70 ± 1 °C, 22hours) or less | No requirement |
5. Static ozone aging test | ISO 1431-1:2012 | No cracks after elongation by 20 % and exposure to 50 pphma at 40 °C for 96 h | No requirement |
NOTE If the colour of the outer cover is not black, the material requirements will differ from those in this table. a Parts of ozone per hundred million of air by volume. | |||
Structure of our Yokohama Rubber Fenders
Specificaton of Yokohama Rubber Fender
| Size | Initial Internal Pressure 50kPa | Initial Internal Pressure 50kPa | |||
Diameter/ Meter | Length /Meter | Energy Absorption /KJ | Reaction Force /KN | Energy Absorption /KJ | Reaction Force /KN |
| 0.5 | 1 | 6 | 64 | 8 | 85 |
| 0.7 | 1.5 | 17 | 137 | 24 | 180 |
| 1.0 | 1.5 | 32 | 182 | 45 | 239 |
| 1.0 | 2.0 | 45 | 257 | 63 | 338 |
| 1.2 | 2.0 | 63 | 297 | 88 | 390 |
| 1.5 | 3.0 | 153 | 579 | 214 | 761 |
| 1.7 | 3.0 | 191 | 639 | 267 | 840 |
| 2.0 | 3.5 | 308 | 875 | 430 | 1150 |
| 2.5 | 4.0 | 663 | 1381 | 925 | 1815 |
| 2.5 | 5.5 | 943 | 2019 | 1317 | 2653 |
| 3.0 | 5.0 | 1050 | 2000 | 1571 | 2709 |
| 3.0 | 6.0 | 1312 | 2488 | 1888 | 3292 |
| 3.3 | 4.5 | 1175 | 1884 | 1640 | 2476 |
| 3.3 | 6.0 | 1675 | 2783 | 2338 | 3652 |
| 3.3 | 6.5 | 1814 | 3015 | 2532 | 3961 |
The Production Process of Yokohama Rubber Fender
Yokohama Rubber Fender Application And Storage
1.The fender pressure should be kept in the standard pressure
,within the rate of ± 5% range.
2.Often check the pressure , when the pressure drops, Inflate the
fender in time, so as not to affect the normal use of the fender.
3.When connecting the fender with a steel wire rope, the wire rope
should be fitted with a rubber sleeve to avoid damage to the fender
4.Do not touch the fender surface with the the sharp objects , to
prevent piercing the fender. If the fender's surface is damaged, it
will affect the lifespan of the fender.
5.When the fender is in normal use, the fixing points should be
firm, prevent the detachment and wash away the fender. Suspension
of the rope and hook ring should be connected orderly , can’t be in
a mess.
6.If the fender won’t be used in a long time , to clean the fender
surface with fresh water, and place the fender in a dry, cool,
ventilated place, without direct sunshine.
7.When the fender is stored for a long time, the pressure should be
reduced and the fender should be placed far away from the heat
source.
8.Because the fender is rubber product, should try to avoid the
fireworks, not contact with acid, alkali, oil and other organic
solution
9.When the fender is stored, it shall not be folded or stacked, and
don’t stack other objects on the fender.
FAQ:
Q1: What's your MOQ?
Answer: The MOQ of ourYokohama rubber fender is 1pc.
Q2: What's the lifespan of your Yokohama rubber fenders?
Answer: Designed lifespan of our Yokohama rubber fenders is 6 to 10 years
Q3: What's your warranty period?
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.
Q4: Can yousuggest the suitable Yokohama rubber fenders ?
Answer: Pls tell us your ship information, as experienced manufacturer, we will recommend suitable size and quantity for you.
Q5: What kind certificate you can provide.
Answer: BV, CCS, RS etc.certificate is available
|
|
