Diameter 500 to 3700mm Boat Bumper Rubber Yokohama Fenders
Product Introduction
Rubber Yokohama Fender is a marine anti-collision product made of compressed air. Compressed air is mainly used as the buffer medium to absorb the impact energy of the ship, making the ship more flexible and soft when docking, so as to achieve the effect of collision and collision avoidance.
Usually aircraft tires or truck tires are used toprotect the fender body. Both ends are equipped with shoulder straps, which are widely used for ship-to-ship transfer operations and ship berthing operations. Wait. The rubber Yokohama fenders are produced in strict accordance with ISO17357-2014 international quality standards, and the products are exported to all over the world.
Advantage of Shunhang Rubber Yokohama Fender
1. Shunhang Yokohama fenders are designed, manufactured according to ISO17357: 2014
2. Technology : Overall winding , Anti high pressure, Explosion
proof
Our Yokohama fenders can bear the pressure 1.5 times than the
ordinary technology overlap joint technology.
3. Raw material of our Yokohama fender : Rubber dipped Nylon cord
fabric, 1260D9091(1*2)and natural rubber, .All the rubber we use is
natural rubber , not any reclaimed rubber .
According to our customers’ feedback, we have been improving the
performance of our rubber , the aging of rubber has been greatly
improved now. Our rubber has been tested at -40℃, the tensile
strength at normal temperature is 18.4MPa.After -40℃, 120 hours
testing , the tensile strength is 15.9MPa , there is no obvious
change in appearance.
Our Yokohama fender are also used in Canada ,Russia etc. After six
months, customers’ feedback is our Yokohama fenders are still
perform well, there’s no obvious change on the surface.

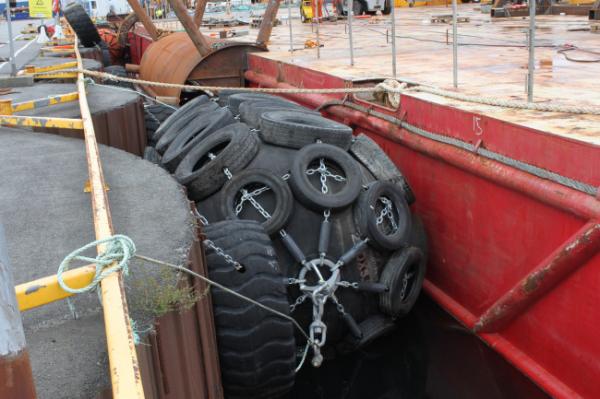

4. The outer chain and tyre net .
Chain - we have hot-dip galvanized chain and stainless steel chain
according to customer’s request
Tyre- we have truck tyre and aircraft tyre according to customer’s
request.
All the chain and tyre nets fitted with appropriate shackles ,
swivel and rubber sleeve etc.
5. Designed of our pneumatic rubber fender is 6 to 10 years
6. Our warranty period is 2 years.
Specificaton of Yokohama Rubber Fender
| Size | Initial Internal Pressure 50kPa | Initial Internal Pressure 50kPa | |||
Diameter/ Meter | Length /Meter | Energy Absorption /KJ | Reaction Force /KN | Energy Absorption /KJ | Reaction Force /KN |
| 0.5 | 1 | 6 | 64 | 8 | 85 |
| 0.7 | 1.5 | 17 | 137 | 24 | 180 |
| 1.0 | 1.5 | 32 | 182 | 45 | 239 |
| 1.0 | 2.0 | 45 | 257 | 63 | 338 |
| 1.2 | 2.0 | 63 | 297 | 88 | 390 |
| 1.5 | 3.0 | 153 | 579 | 214 | 761 |
| 1.7 | 3.0 | 191 | 639 | 267 | 840 |
| 2.0 | 3.5 | 308 | 875 | 430 | 1150 |
| 2.5 | 4.0 | 663 | 1381 | 925 | 1815 |
| 2.5 | 5.5 | 943 | 2019 | 1317 | 2653 |
| 3.0 | 5.0 | 1050 | 2000 | 1571 | 2709 |
| 3.0 | 6.0 | 1312 | 2488 | 1888 | 3292 |
| 3.3 | 4.5 | 1175 | 1884 | 1640 | 2476 |
| 3.3 | 6.0 | 1675 | 2783 | 2338 | 3652 |
| 3.3 | 6.5 | 1814 | 3015 | 2532 | 3961 |
Features of Yokohama Fender
1. Guaranteed energy absorption
2. Chain tyre net and sling type
3. Thick skin construction
4. Good angular performance
5. Less surface pressure onto the side wall of ships. (The capability of accepting surface pressure of the fender is up to 14 ton/m2).
6. No reduction on the performance of compression when inclined.
7. Suitable for areas with large or small tides.
8. Suitable in cold weather because the compressed air as buffering medium.
9. Especially in mooring of large scale ships in sea docks and lightering.
10. Maintains large clearances between hull and structure
Outer and Inner Rubber Material Requirements of Yokohama Rubber Fenders
Test item | Test method | Required value | |
| Outer rubber | Inner rubber | ||
| 1. Before aging | – | – | – |
| 1.1 Tensile strength | ISO 37:2011 | 18 MPa or more | 10 MPa or more |
| 1.2 Elongation | ISO 37:2011 | 400 % or more | 400 % or more |
| 1.3 Hardness | ISO 7619-1:2010 | 60 ± 10 (Durometer hardness Type A) | 50 ± 10 (Durometer hardness Type A) |
2. After aging | ISO 188:2011 | Air oven aging, 70°C ± 1°C, 96 h | Air oven aging, 70°C ± 1°C, 96 h |
| 2.1 Tensile strength | ISO 37:2011 | Not less than 80 % of the original property | Not less than 80 % of the origi- nal property |
| 2.2 Elongation | ISO 37:2011 | Not less than 80 % of the original property | Not less than 80 % of the origi- nal property |
| 2.3 Hardness | ISO 7619-1:2010 | Not to exceed the original prop- erty by more than 8 | Not to exceed the original prop- erty by more than 8 |
| 3. Tear | ISO 34-1:2010 | 400 N/cm or more | No requirement |
| 4. Compression set | ISO 815-1:2008 | 30 %(70 ± 1 °C, 22hours) or less | No requirement |
5. Static ozone aging test | ISO 1431-1:2012 | No cracks after elongation by 20 % and exposure to 50 pphma at 40 °C for 96 h | No requirement |
NOTE If the colour of the outer cover is not black, the material requirements will differ from those in this table. a Parts of ozone per hundred million of air by volume. | |||
Application of Rubber Yokohama Fender
1. Large crude oil carrier, VLCC
2. Container vessel
3. Offshore sea task platform
4. Large shipyard and dock
5. Large ship and cruise ship
6. Army harbor dock
7. Large bridge pier
FAQ:
Q1: What's your MOQ?
Answer: The MOQ of our Yokohama fender is 1pc.
Q2: What's the lifespan of your Yokohama fenders?
Answer: Designed lifespan of our Yokohama fenders is 6 to 10 years
Q3: What's your warranty period?
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.
Q4: Can you suggest the suitable Yokogama fenders size and quantity for me?
Answer: Pls tell us your ship information, as experienced manufacturer, we can suggest suitable size and quantity for you.
Q5: What kind certificate you can provide.
Answer: RS, CCS etc.certificate is available
|
|
