| Brand Name : | Shunhang |
| Model Number : | SH-YRF15 |
| Certification : | BV, CCS, ISO9001 |
| Price : | USD 260to 7000/PC |
| Payment Terms : | Cash, Western Union,, T/T-30$ deposit, balance before delivery |
| Supply Ability : | 260 to 300 pcs per month |
| Delivery Time : | within 15 working days |

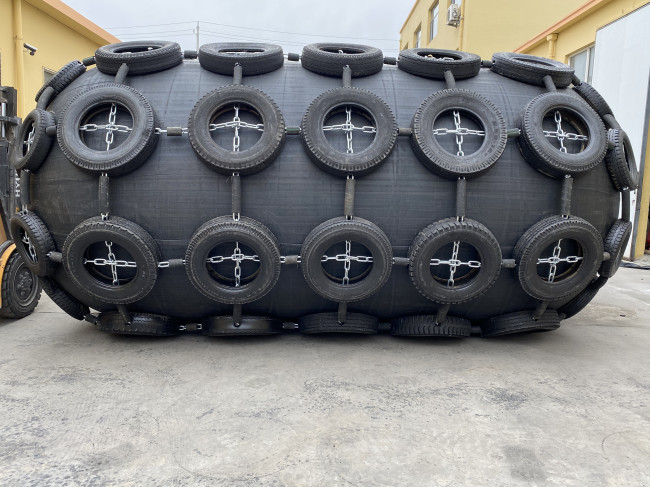

Ship To Berthing Certified Yokohama Rubber Fenders
Features Of Our Yokohama Rubber Fender
* Available in a variety of sizes , Diameters ranging from 500 mm
to 4500 mm and length ranging from 500 mm to 12000 mm
* Many kinds of color ,Black , Milky white , Warship Level Gray ,
Orange Red , Blue
* Contructed with an inner rubber layer,reinforcing cord layers and
outer rubber layer
* Comprehensively tested for material and hydrostatic pressure
irregularities
* Correctly evaluated for angular and durability performance
* Clearly marked with all relevant identification
* Complete with up- to -date certification
Unique Design of Shunhang Yokohama Rubber Fender
Active-Protecting Safety Valve , All fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.
It is a patented design which could avoid explosion of fenders from collision and air inflation.
Shunhang flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Shunhang casting flange improves 40% higher than traditional type.
Specificaton of Yokohama Rubber Fender
| Size | Initial Internal Pressure 50kPa | Initial Internal Pressure 50kPa | |||
Diameter/ Meter | Length /Meter | Energy Absorption /KJ | Reaction Force /KN | Energy Absorption /KJ | Reaction Force /KN |
| 0.5 | 1 | 6 | 64 | 8 | 85 |
| 0.7 | 1.5 | 17 | 137 | 24 | 180 |
| 1.0 | 1.5 | 32 | 182 | 45 | 239 |
| 1.0 | 2.0 | 45 | 257 | 63 | 338 |
| 1.2 | 2.0 | 63 | 297 | 88 | 390 |
| 1.5 | 3.0 | 153 | 579 | 214 | 761 |
| 1.7 | 3.0 | 191 | 639 | 267 | 840 |
| 2.0 | 3.5 | 308 | 875 | 430 | 1150 |
| 2.5 | 4.0 | 663 | 1381 | 925 | 1815 |
| 2.5 | 5.5 | 943 | 2019 | 1317 | 2653 |
| 3.0 | 5.0 | 1050 | 2000 | 1571 | 2709 |
| 3.0 | 6.0 | 1312 | 2488 | 1888 | 3292 |
| 3.3 | 4.5 | 1175 | 1884 | 1640 | 2476 |
| 3.3 | 6.0 | 1675 | 2783 | 2338 | 3652 |
| 3.3 | 6.5 | 1814 | 3015 | 2532 | 3961 |
Outer and Inner Rubber Material Requirements of Yokohama Rubber Fenders
Test item | Test method | Required value | |
| Outer rubber | Inner rubber | ||
| 1. Before aging | – | – | – |
| 1.1 Tensile strength | ISO 37:2011 | 18 MPa or more | 10 MPa or more |
| 1.2 Elongation | ISO 37:2011 | 400 % or more | 400 % or more |
| 1.3 Hardness | ISO 7619-1:2010 | 60 ± 10 (Durometer hardness Type A) | 50 ± 10 (Durometer hardness Type A) |
2. After aging | ISO 188:2011 | Air oven aging, 70°C ± 1°C, 96 h | Air oven aging, 70°C ± 1°C, 96 h |
| 2.1 Tensile strength | ISO 37:2011 | Not less than 80 % of the original property | Not less than 80 % of the origi- nal property |
| 2.2 Elongation | ISO 37:2011 | Not less than 80 % of the original property | Not less than 80 % of the origi- nal property |
| 2.3 Hardness | ISO 7619-1:2010 | Not to exceed the original prop- erty by more than 8 | Not to exceed the original prop- erty by more than 8 |
| 3. Tear | ISO 34-1:2010 | 400 N/cm or more | No requirement |
| 4. Compression set | ISO 815-1:2008 | 30 %(70 ± 1 °C, 22hours) or less | No requirement |
5. Static ozone aging test | ISO 1431-1:2012 | No cracks after elongation by 20 % and exposure to 50 pphma at 40 °C for 96 h | No requirement |
NOTE If the colour of the outer cover is not black, the material requirements will differ from those in this table. a Parts of ozone per hundred million of air by volume. | |||
Characteristic
● External wear resistance ● Bearing pressure
● Ageing resistance ● Long service life
● Good air tightness ● Easy storage
● Non deformation ● Simple installation
Notice Of Fender Application And Storage
1. The fender pressure should be kept in the standard pressure
,within the rate of ± 5% range.
2. Often check the pressure , when the pressure drops, Inflate the
fender in time, so as not to affect the normal use of the fender.
3. When connecting the fender with a steel wire rope, the wire rope
should be fitted with a rubber sleeve to avoid damage to the fender
4. Do not touch the fender surface with the the sharp objects , to
prevent piercing the fender. If the fender's surface is damaged, it
will affect the lifespan of the fender.
5. When the fender is in normal use, the fixing points should be
firm, prevent the detachment and wash away the fender. Suspension
of the rope and hook ring should be connected orderly , can’t be in
a mess.
6. If the fender won’t be used in a long time , to clean the fender
surface with fresh water, and place the fender in a dry, cool,
ventilated place, without direct sunshine.
7. When the fender is stored for a long time, the pressure should
be reduced and the fender should be placed far away from the heat
source.
8. Because the fender is rubber product, should try to avoid the
fireworks, not contact with acid, alkali, oil and other organic
solution
9. When the fender is stored, it shall not be folded or stacked,
and don’t stack other objects on the fender.
FAQ:
Q1: What's your MOQ?
Answer: The MOQ of our Yokohama rubber fender is 1pc.
Q2: What's the lifespan of your Yokohama rubber fenders?
Answer: Designed lifespan of our Yokohama rubber fenders is 6 to 10 years
Q3: What's your warranty period?
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.
Q4: Can you recommend the suitable Yokohama rubber fenders for me?
Answer: Pls tell us your ship information, as experienced manufacturer, we will recommend suitable size and quantity for you.
Q5: What kind certificate you can provide.
Answer: CCS, BV, RS etc.certificate is available
|
|
