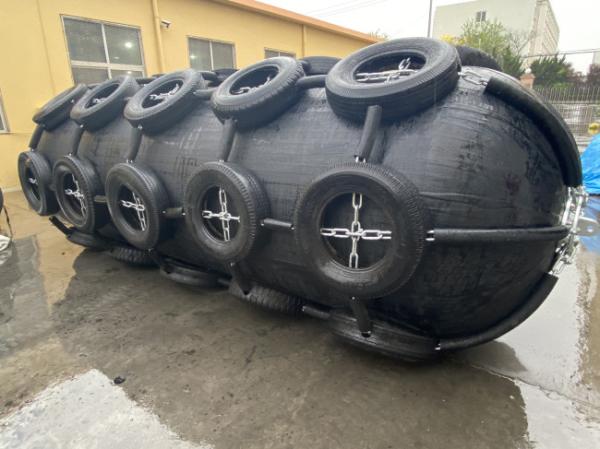

Ship To Ship Chain Tyre Net Pneumatic Yokhama Rubber Fender

Product Introduction

Yokohama rubber fender is also known as pneumatic rubber fender. It was fiest invented by the manufacturer of YOKOHAMA, so it now also called Yokohama fenders. After years of improvement, Shunhang's rubber pneumatic rubber fenders used special technilogy and material, makes it to have better performance .

Specificaton of Yokohama Rubber Fender

Outer and Inner Rubber Material Requirements of Rubber Pneumatic Fenders

Advantages of Yokohama Rubber Fenders

Advantages During Inclined Berthing

During berthing, the initial contact with the dock is usually at an oblique angle and that places a lot of pressure on both surfaces (the dock and the ship).

For typical solid rubber fenders, at inclined compression which is usually the case, energy absorption decreases considerably. Therefore, it is not unusual to see solid fenders used are larger in sizes. On the other hand, pneumatic fenders’ energy absorption maintains at a relatively high level despite inclined compression. Due to a more evenly distribution of load pressure, the torque performance against the dock is usually smaller when compared to conventionally designed solid fender systems.

Stronger Against Shearing Force

After making contact with the dock, the vessel is usually slowly moved to the optimum mooring position. This action exerts high shearing force and compression on the surface of fenders. Most solid fenders are severely damaged due to such forces as they are not designed to withstand strong shearing forces and friction that way. However, it depends on the designs/types of solid fenders. For example, MAX frontal pads for solid fenders are designed to tackle this issue and protect the fenders from shearing forces, in which the surface of fenders do not make contact with the ship.

Relatively Safe Even During Excess Load

Generally speaking, all fenders should be used within the impact load limit. However in real life situations, it is common to see that fenders often accidentally receive excess loads. When that happens, the fortunate thing about a pneumatic fender is that the reaction force does not increase sharply under excessive load. In contrast, solid fenders’ reaction forces tend to spike sharply under excessive load conditions and damage the ship during the mooring process. This is also helped by pneumatic type fenders’ characteristic that enables a more uniform distribution of stress.

Tide Adaptation

Pneumatic fenders are primarily floating-types, which means the fenders float on the water in an unrestricted vertical plane corresponding to the tidal range and ship’s vertical movement. Therefore, fender energy absorption always take place at the most optimum position.

Notice Of Yokohama Rubber Fender Application And Storage
1.The fender pressure should be kept in the standard pressure ,within the rate of ± 5% range.
2.Often check the pressure , when the pressure drops, Inflate the fender in time, so as not to affect the normal use of the fender.
3.When connecting the fender with a steel wire rope, the wire rope should be fitted with a rubber sleeve to avoid damage to the fender
4.Do not touch the fender surface with the the sharp objects , to prevent piercing the fender. If the fender's surface is damaged, it will affect the lifespan of the fender.
5.When the fender is in normal use, the fixing points should be firm, prevent the detachment and wash away the fender. Suspension of the rope and hook ring should be connected orderly , can’t be in a mess.
6.If the fender won’t be used in a long time , to clean the fender surface with fresh water, and place the fender in a dry, cool, ventilated place, without direct sunshine.
7.When the fender is stored for a long time, the pressure should be reduced and the fender should be placed far away from the heat source.
8.Because the fender is rubber product, should try to avoid the fireworks, not contact with acid, alkali, oil and other organic solution
9.When the fender is stored, it shall not be folded or stacked, and don’t stack other objects on the fender.

Shunhang Yokohama Rubber Fender

Inspection of Shunhang Yokohama Rubber Fenders

Usage of Yokohama Rubber Fenders

FAQ:

Q1: What's your MOQ?

Answer: The MOQ of our Yokohama rubber fender is 1pc.

Q2: What's the lifespan of your Yokohama rubber fender?

Answer: Designed lifespan of our Yokohama rubber fender is 6 to 10 years

Q3: What's your warranty period?

Answer: Our warranty period is 24 monthes. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.

Q4: Can you recommend the suitable Yokohama rubber fender for me?

Answer: Pls tell us your ship information, as experienced manufacturer, we will recommend suitable size and quantity for you.

Q5: What kind certificate you can provide.

Answer: ISO9001, CCS, SGS, BV,ABS, RS. etc.certificate is available

Yokohama Rubber Fender , Rubber Pneumatic Fender, Marine Pneumatic Rubber Fender

Qingdao Shunhang Marine Supplies Co.,Ltd. located in Qingdao ,China. Our company was established in 2011, specialized in manufacturing marine rubber airbags ,pneumatic rubber fender,EVA foam filled fenders.

Our company has passed ISO9001 certificate. Our products have approved by CCS, BV, ABS, RS, SGS etc.

We have established long-term cooperative relationship with many shipyards, ship owners and trading companies . Our products have been exported to Southeast Asia,Middle East, Africa, South America and European markets. etc. many countries and regions.
